Rc Toyota Mountain Rider
-
Description

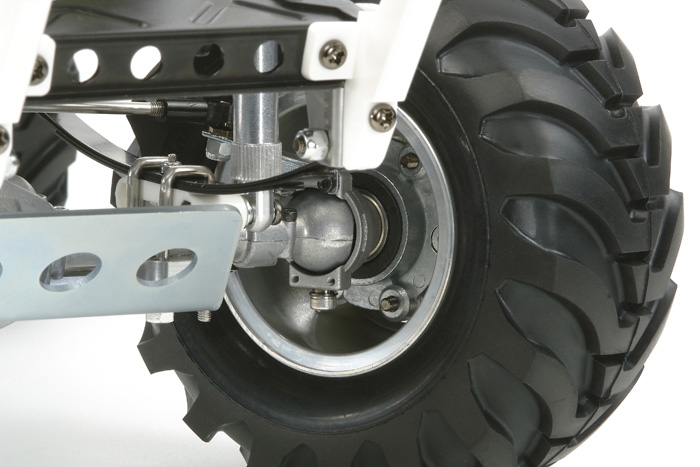

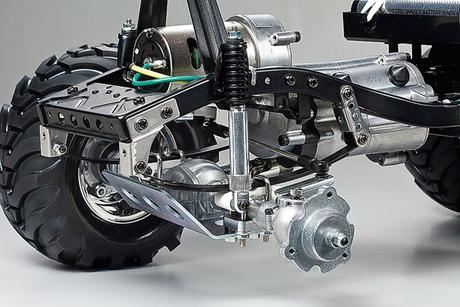

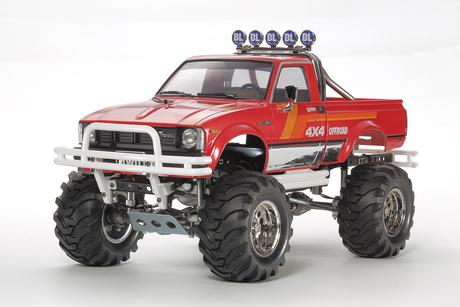

This rip-roaring R/C model assembly kit recreates the Toyota Hilux, a pick-up truck which has enjoyed enduring popularity in the U.S., Japan and beyond. The model employs a ladder frame like that on the actual car, and is powered by a 3-speed transmission that offers 4WD (1st gear) and 2WD (2nd and 3rd gears) and allows gear changing while running. The realism doesn't stop there, with the sturdy suspension featuring metal axle housings, leaf springs and shackles, while the rear setup is fitted with a radius rod. A metal front under guard helps the model take on tough off-road conditions. The detailed and durable injection-molded body with roll bar is married to metal-plated wheels on 123mm diameter tires to give the model a stylish, high-lift appearance.
About the Toyota Truck
The Toyota Hilux has enjoyed sustained popularity in Japan and across the world since the first model's debut in 1968. The 3rd generation 30/40 Series appeared in 1978, with the RN36 model developed for export markets. It featured a sporty, lightweight body and was powered by a 98hp 1,968cc 4-cylinder gasoline engine. Furthermore, its live axle suspension featured front leaf spring shackles located toward the rear to provide a sufficient approach angle for superb off-road performance. Front/rear flared fenders and large tires gave the truck a tall, aggressive stance, the look complemented by the chunky front grille and dual rounded headlights. The RN36 was mainly exported to North America, but was also later sold in Japan and there are still many fans of this pick-up to this day.
●Length: 525mm, Width: 278mm, Height: 275mm, Weight: 3.2kg ●Tread: 200mm (Front), 218mm (Rear) ●Wheelbase: 287mm ●Tire Width/Diameter (F/R): 60/123mm ●Type 540 Motor ●Longitudinally-Mounted Motor Shaft-Driven 4WD ●Front & Rear 6-Pinion Differential Gears ●Front & Rear Oil Dampers ●Gear Ratio; 1st Gear=1：54.63 (4WD),
2nd Gear=1：40.49 (2WD), 3rd Gear=1：27.92 (2WD) ●Requires an Electronic Speed Controller (sold separately)
-
Specifications
- Adjustable Gear Ratio 3-speed transmission
- Bearings Metal bushings
- Body Material ABS Plastic
- Chassis Material Aluminum & plastic
- Construction Type Assembly kit
- Differential Type Gear
- Discontinued True
- Drive Type 3-speed
- Led Light Buckets Yes
- Led Lights No
- Motor 540-brushed type
- Required To Complete 4-channel radio gear
- Scale 1/10
- Shock Damper Friction damper
- Special Feature 1 Length: 525mm
- Special Feature 2 ABS plastic molded body
- Special Feature 3 Metal ladder frame chassis

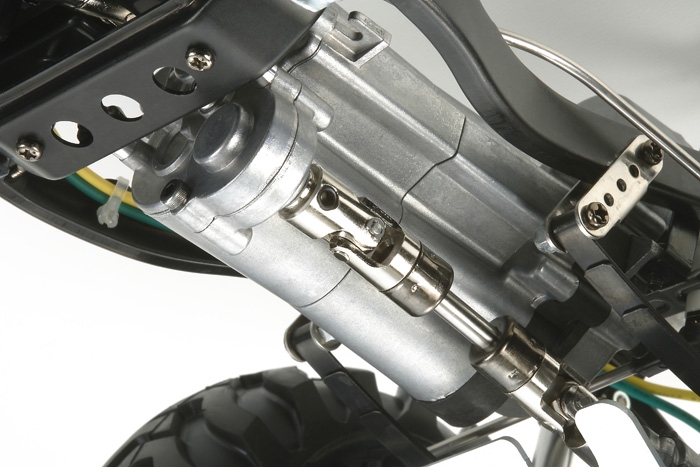

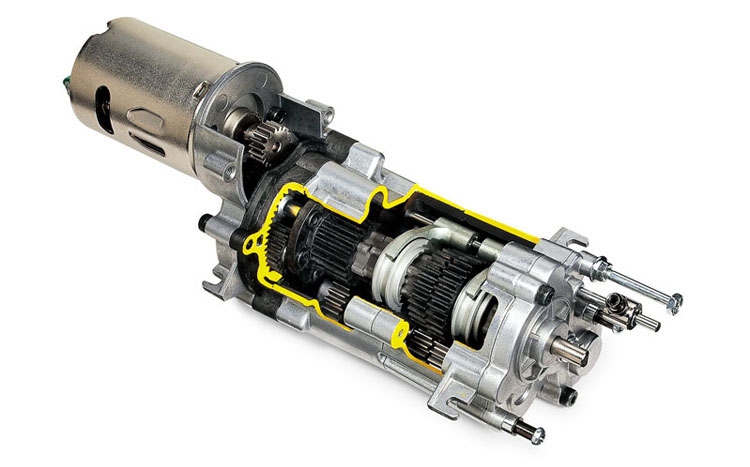

- Special Feature 4 The die-cast transmission is equipped with planetary gears for optimized gear ratio
- Special Feature 5 Refined clutch mechanisms offer smooth gear changes and superb durability
- Special Feature 6 3-speed gears are possible (1st gear = 4WD, 2nd & 3rd gears = Rear Wheel Drive)

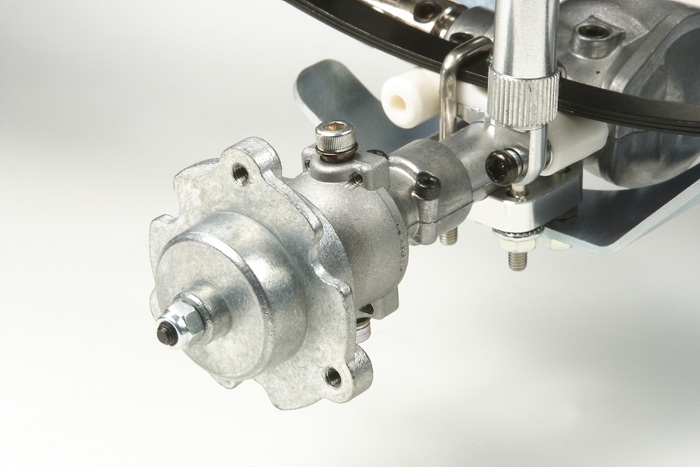

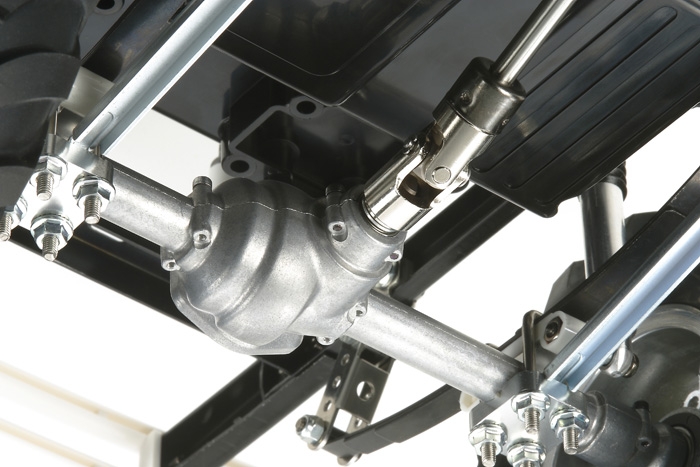

- Special Feature 7 Die-cast aluminum front/rear axle housings are equipped with differential gears
- Special Feature 8 Front and rear differentials may be locked for even greater off-road performance
- Special Feature 9 Separately available LEDs can be installed in the light cases to depict realistic head and tail lights
- Suspension Leaf spring
- Terrain Use Multi-Purpose
