Item# 58725-A

Rc Squash Van

Gf-02

MSRP: $280.00
Find spare parts Find upgrade parts

The Squash Van is our latest fun-to-drive big tire vehicle that is inspired by 1950’s American panel vans. The polycarbonate body shell sits on top of the new ... Learn more

Rc Squash Van

  1. Description

    Description

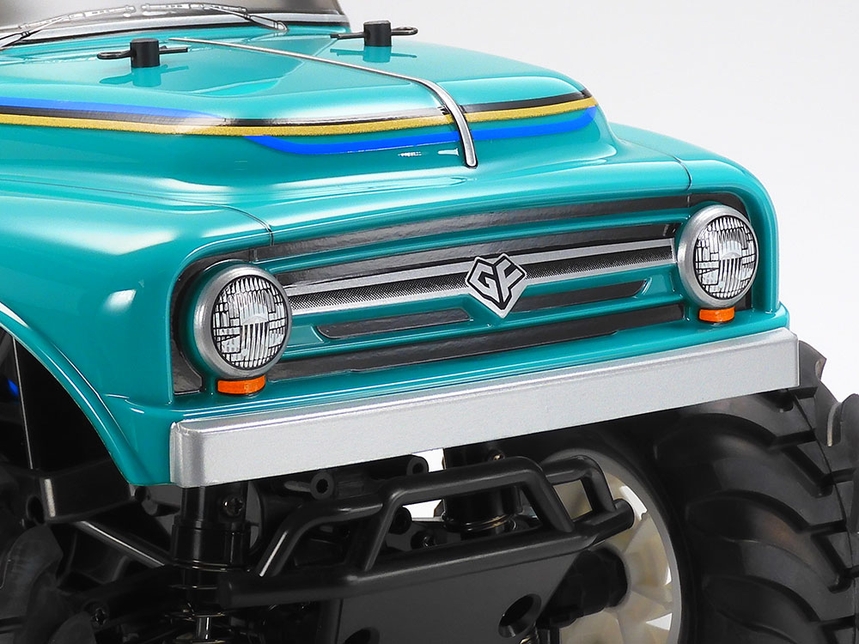

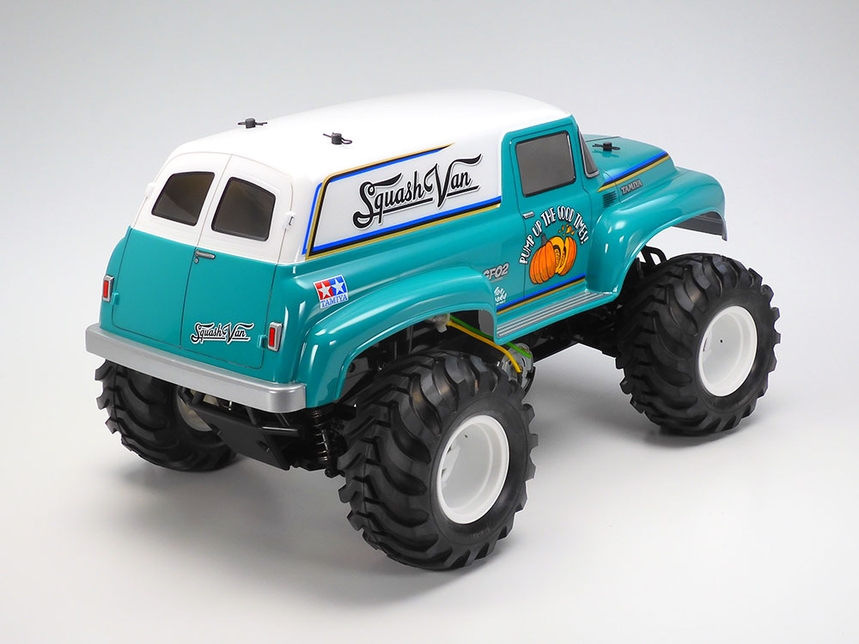

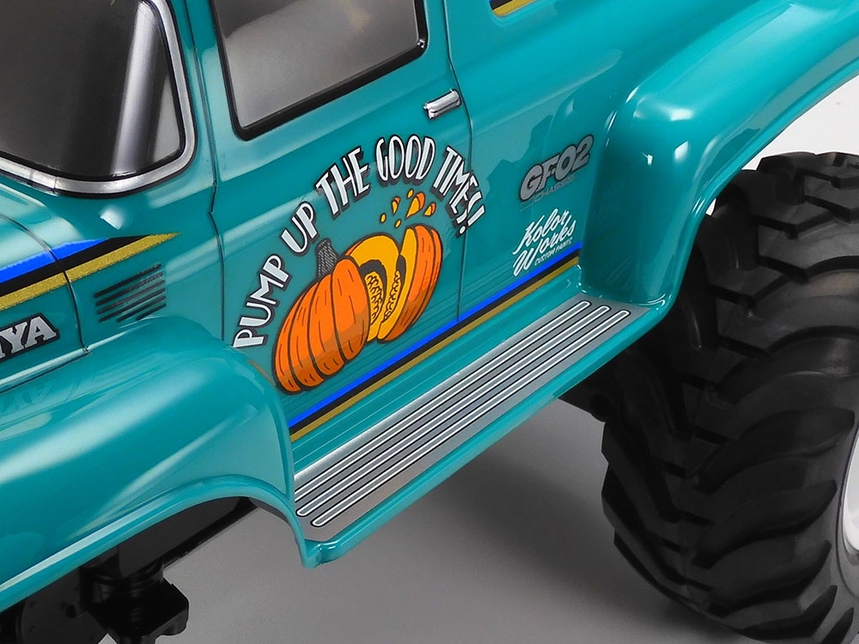

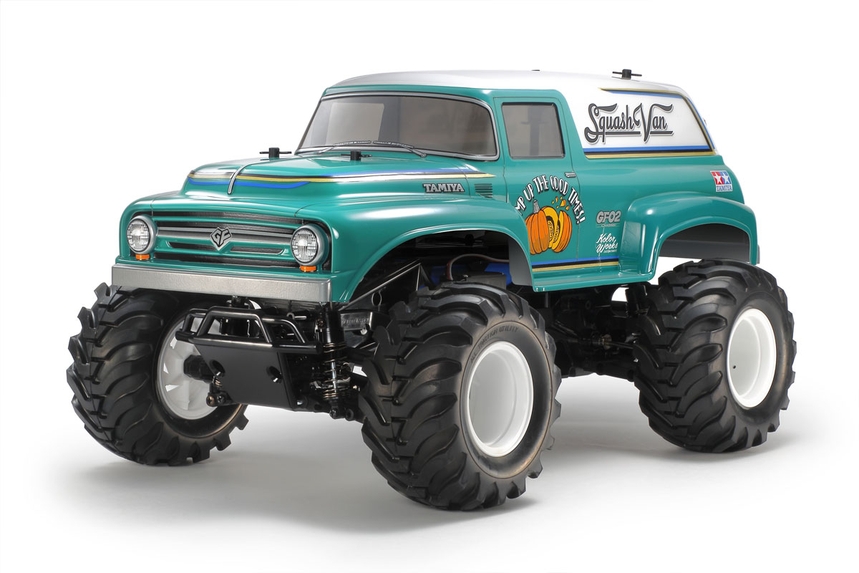

    The Squash Van is our latest fun-to-drive big tire vehicle that is inspired by 1950’s American panel vans. The polycarbonate body shell sits on top of the new gear-driven 4WD GF-02 chassis, which is a variant of the comical GF-01. While the GF-01 chassis features a comical design, the GF- 02 chassis employs a more realistic wheelbase and a frame with ladder and pipe motifs.

    GF-02 chassis

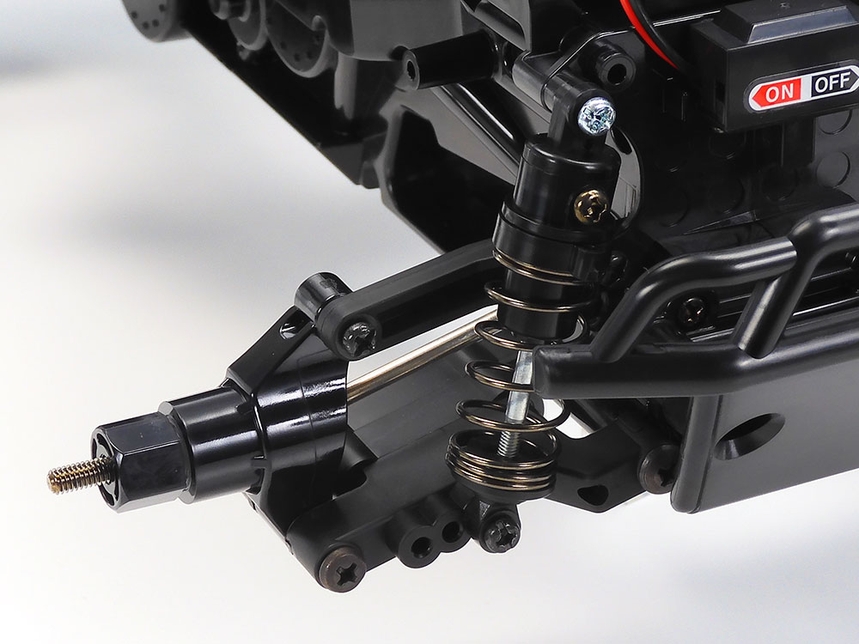

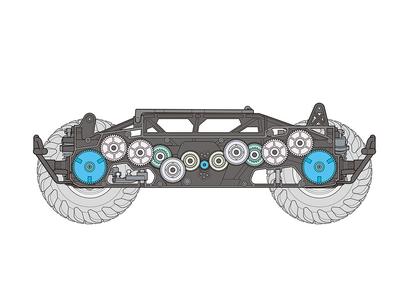

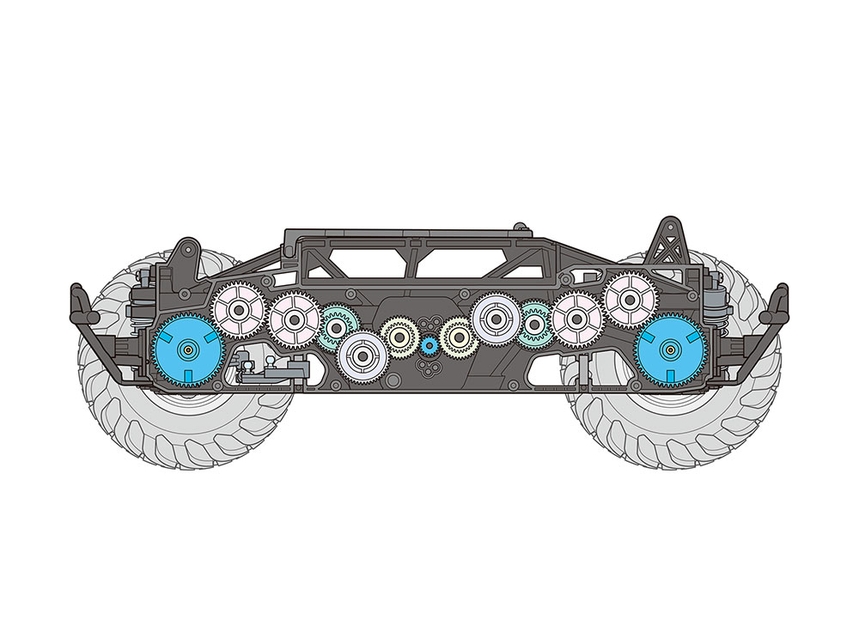

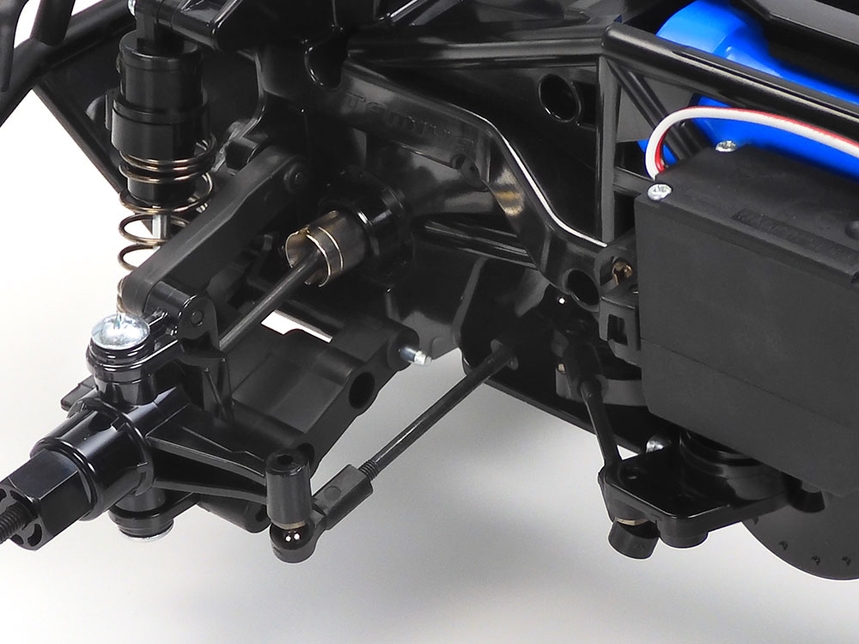

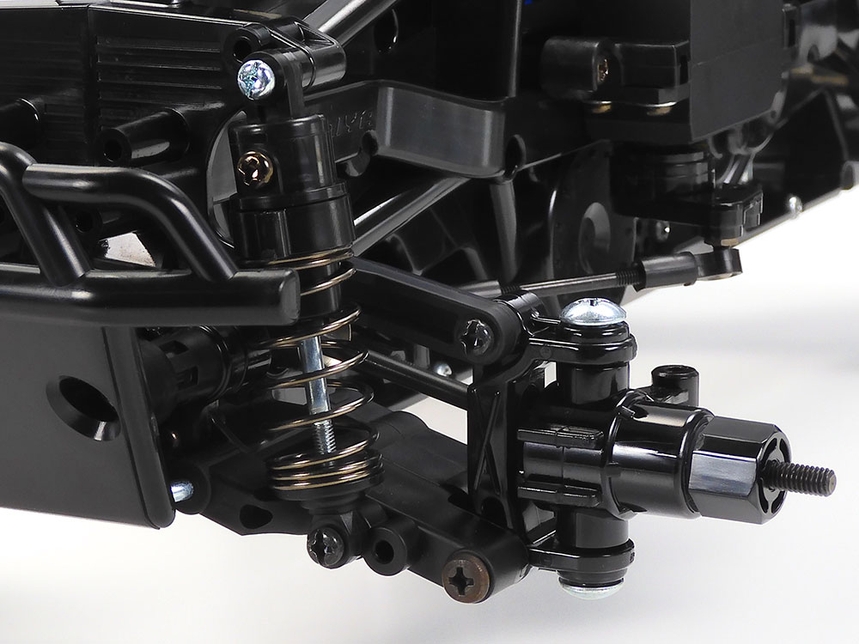

    The gear-driven 4WD GF-02 chassis features its motor in a low, central position in the lightweight, durable monocoque frame, and transmits power to front and rear via gears. The long wheelbase and wide tread setup ensure stable off-road performance. The slim frame features ladder/pipe motifs and features integrated sealed gearboxes which help keep stones out. Front and rear gear differentials allow smooth cornering, while separately sold pinion gears offer a choice from three types of gear ratios, and a motor guard enhances reliability off-road. The 4-wheel double wishbone suspension employs four friction dampers, and the steering servo is positioned on the left with identical-length tie-rods.

    • 1/10 R/C assembly kit. Wheelbase: 267 mm
    • Front/Rear tread: F: 223mm / R: 221mm.
    • V-Block pattern Block Tires 122.8mm diameter.
    • Gear Ratios: 18T (18.03:1), 20T (16.23:1), 17T (19.09:1) Kit is supplied with 18 tooth pinion gear.
    • 4WS-four-wheel steering compatible with separately sold third-party 4WS function radio.
    • Body post position same as long wheelbase CC-02 chassis.
    • Includes 540 brushed type motor and ESC.

    • Required to complete: 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint.

    Parts Description
  2. Specifications

    Specifications

    • Adjustable Gear Ratio Yes
    • Bearings Plastic bushing
    • Body Material Polycarbonate
    • Body Stickers Included
    • Chassis Material ABS Plastic
    • Chassis Type GF-02
    • Construction Type Assembly Kit
    • Differential Type Gear
    • Drive Type 4WD
    • Electronic Speed Control (esc) Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
    • Motor 540-brushed type
    • Required To Complete 2-channel radio, steering servo, 7.2-7.4volt battery & battery charger, and Tamiya PS paint.
    • Scale 1/10
    • Shock Damper Friction type
    • Suspension Fully Independent Double Wishbone
    • Terrain Use Multi-Purpose
