Rc M08 Chassis Kit
-
Description

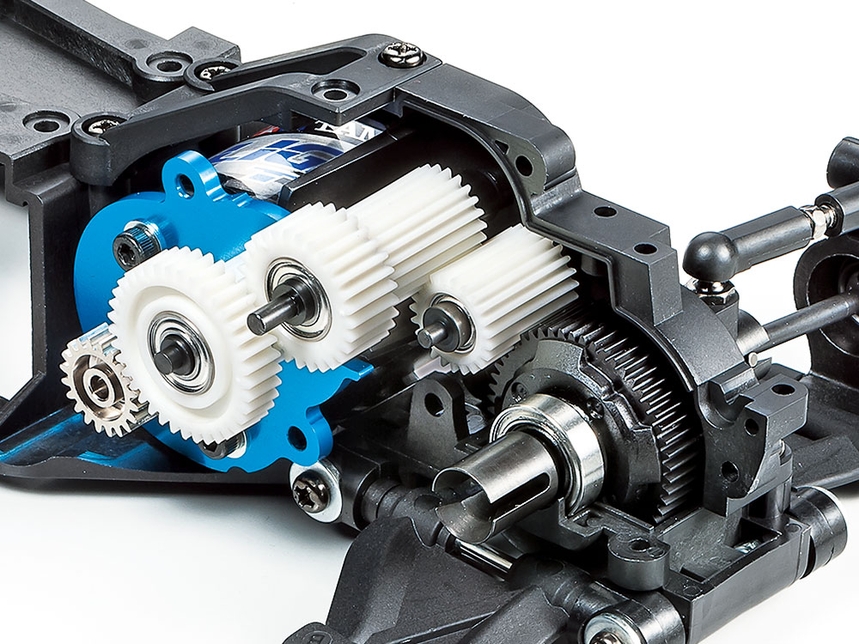

This TAMIYA high-performance rear-wheel drive R/C chassis assembly kit is constructed around a rigid monocoque with the main frame split into front and rear sections. It offers superior rear high traction drive characteristics and fuss-free maintenance of parts such as the easy-access differential. C.V.A. (Constant Volume Adjustable) oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for a range of setup options. A silky-smooth drivetrain utilizes full ball bearings, oil-filled gear differential unit and universal drive shafts. It can be assembled with a 210mm (S), 225mm (M) or 239mm (L) wheelbase, making it compatible with appropriately-sized existing Tamiya M-chassis body parts sets.
• 1/10 scale R/C model assembly kit.

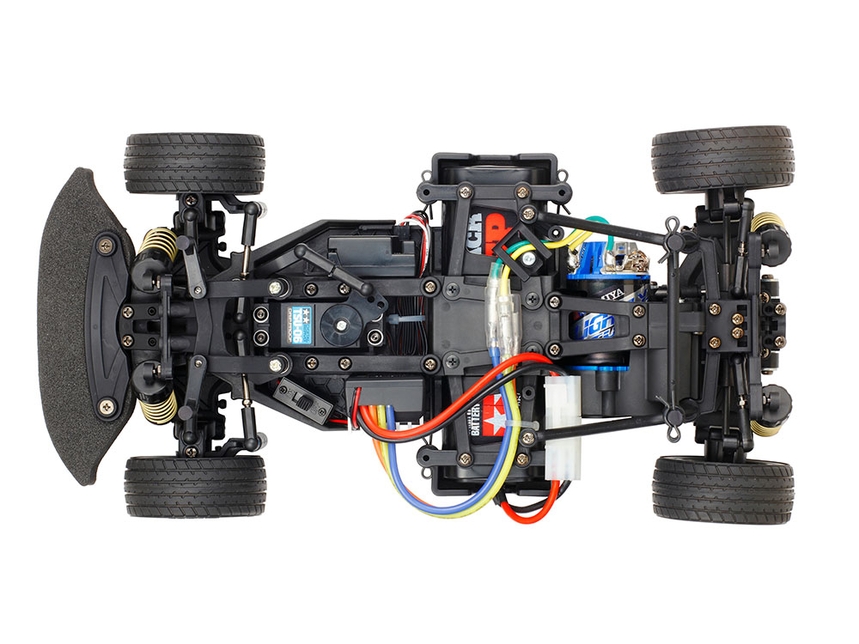

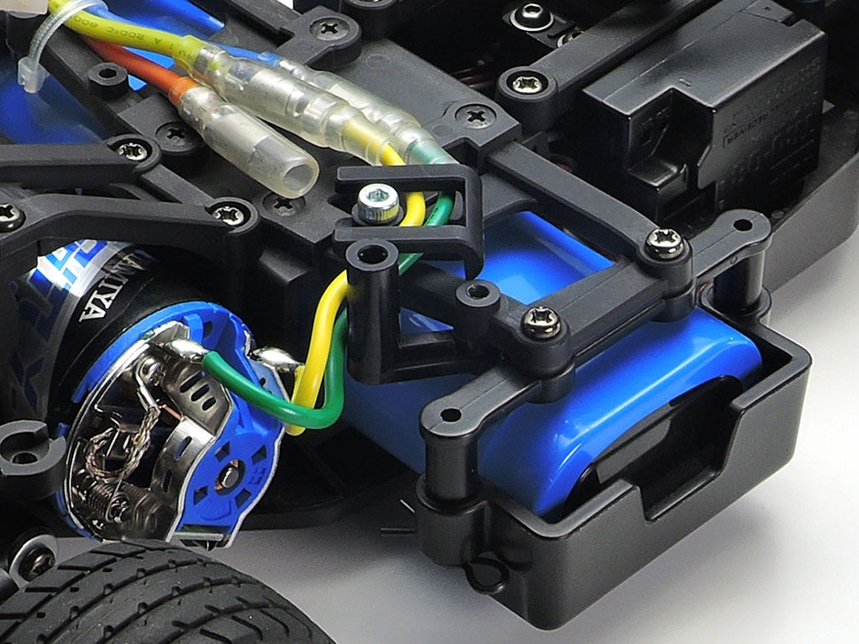

• The chassis is split into front (suspension and servo) and rear (motor and battery) sections. It can be assembled into three different wheelbases: S (210mm), M (225mm) or L (239mm).

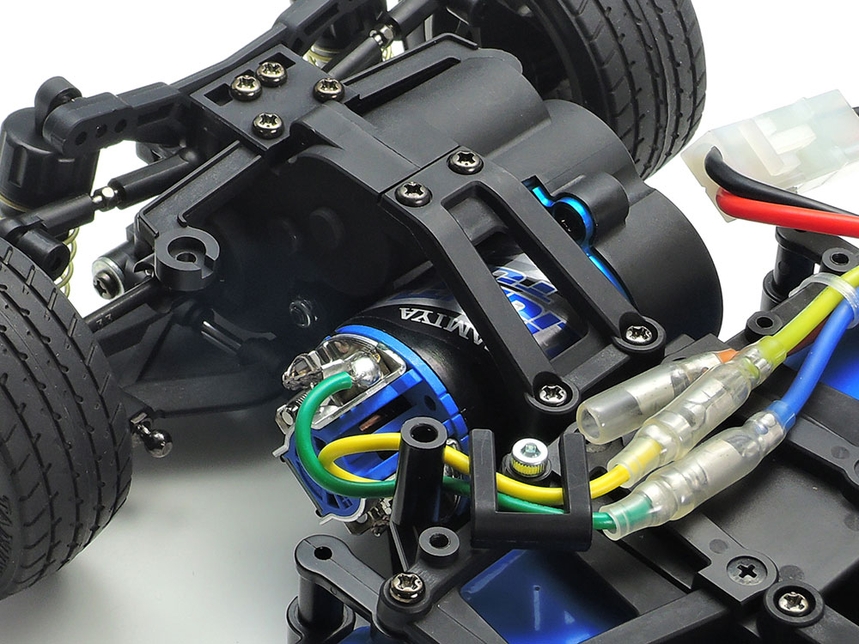

• Rear-midship motor powers rear wheels via a differential in the Mid-Rear setup.
• Oil-filled differential gear used from the M-07.
• Features proven M-07 Concept designs: suspension arms, uprights, suspension mounts and aluminum parts.

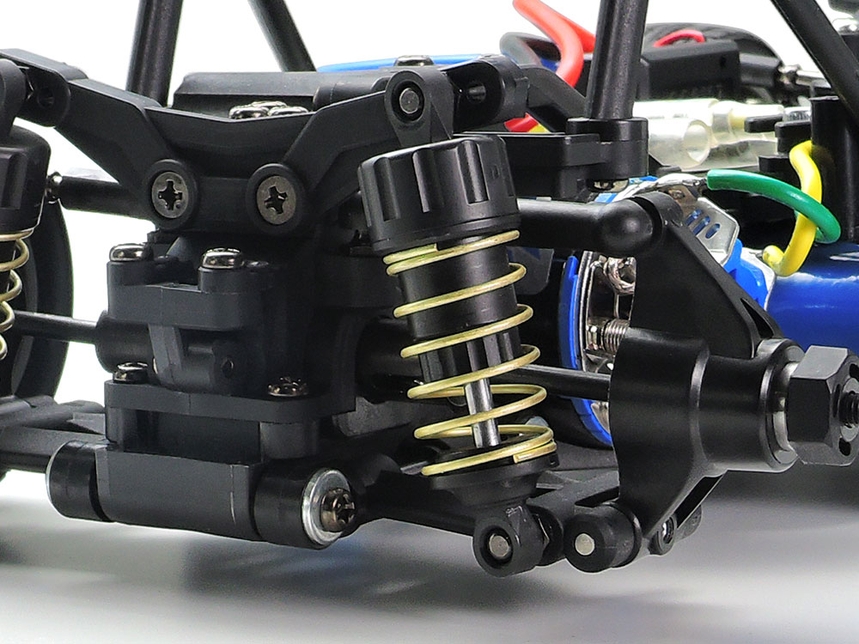

• Includes CVA oil dampers, universal drive shafts, full ball bearings and hi-torque servo saver.

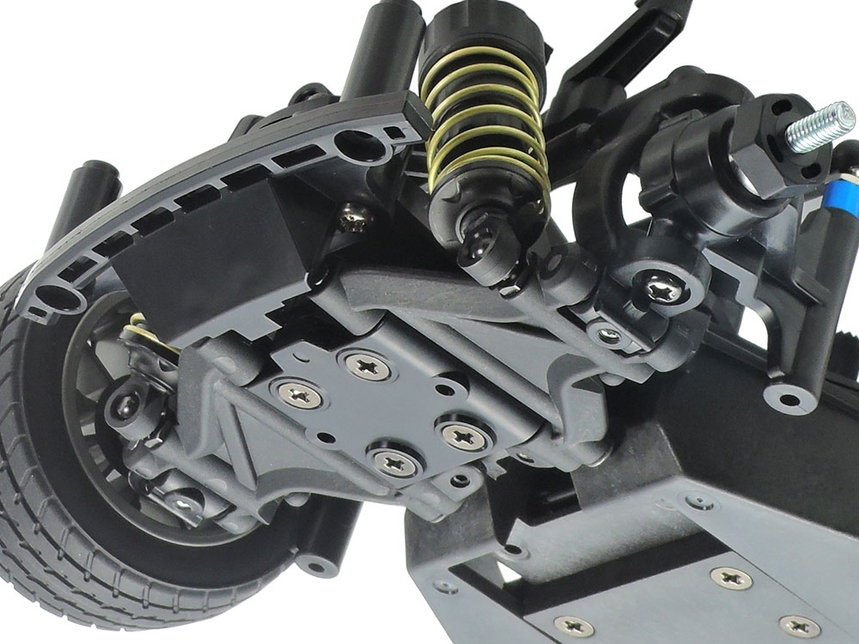

• Comes with new front suspension mounts (0 degrees) and hub carriers (2 degrees) for a total caster angle of 2 degrees.
• Compatible with M-06 Chassis bodies.
• Requires: 2-Channel Radio, servo, ESC, motor, 7.2-7.4volt battery pack & compatible charger, and body set.
• Compatible with M-07 Concept Hop-Up Option parts such as Aluminum Rear Suspension Mount (Skid Angle Adjustment) (54787), Aluminum Rear Uprights (54781) and Low-Friction King Pin Pipes (54813).
M-08 Car Set Up Sheet Blank: Get it here!
-
Specifications
- Adjustable Gear Ratio Yes
- Bearings Includes full ball bearings
- Body Material Not Included
- Chassis Material FRP Fiberglass Reinforced Plastic
- Chassis Type M-08
- Construction Type Assembly Kit
- Differential Type Gear-Type (Oil-Filled)
- Drive Type 2WD
- Required To Complete 2-channel radio gear, steering servo, electronic speed control, 7.2-7.4volt battery & compatible charger, M-chassis body, and tires
- Scale 1/10
- Shock Damper CVA Oil Filled

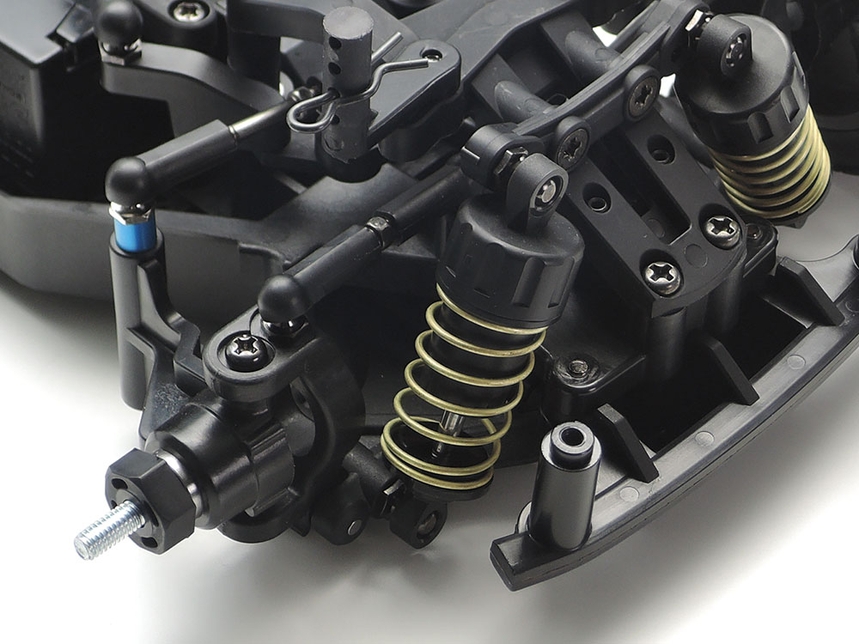

- Suspension 4-wheel fully independent double wishbone
- Terrain Use On-Road
-
