Rc Porsche 956
-
Description

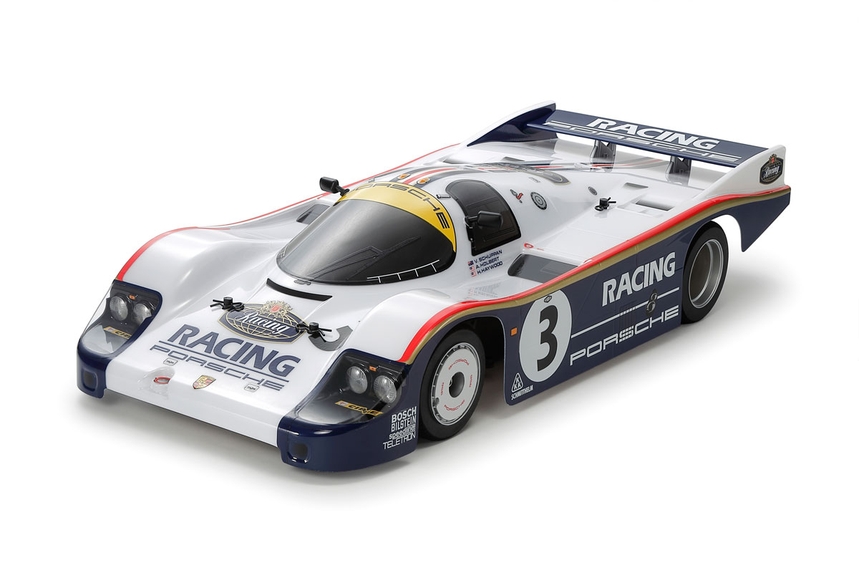

The Porsche 956 is an iconic sports prototype car which was developed along with the start of Group C regulations for the World Endurance Championship in 1982. In the same year, it achieved both Manufacturer’s and Driver’s Championships. This assembly kit recreates the Le Mans version of the 1983 works Porsche 956 which achieved victory at all seven races in the 1983 season!
Direct-Drive 2WD Chassis

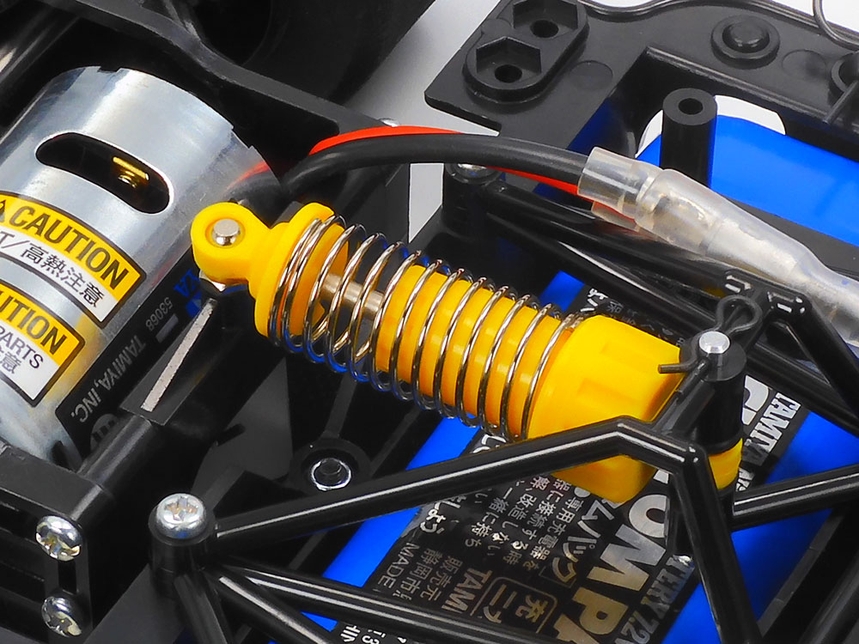

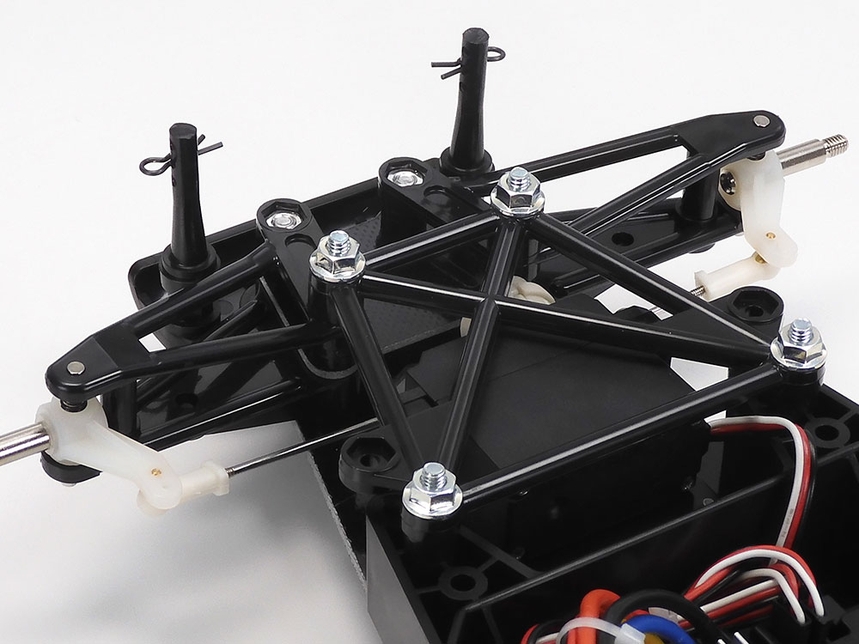

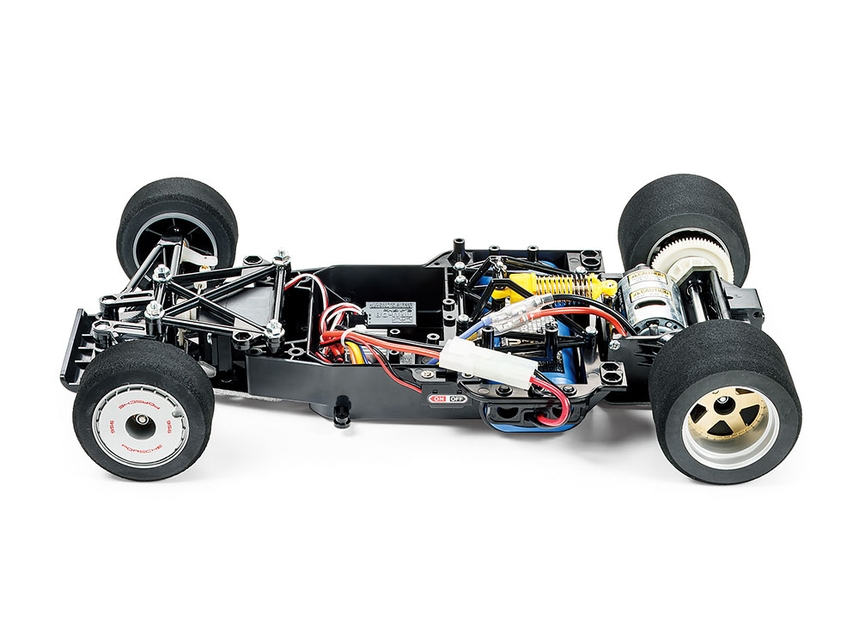

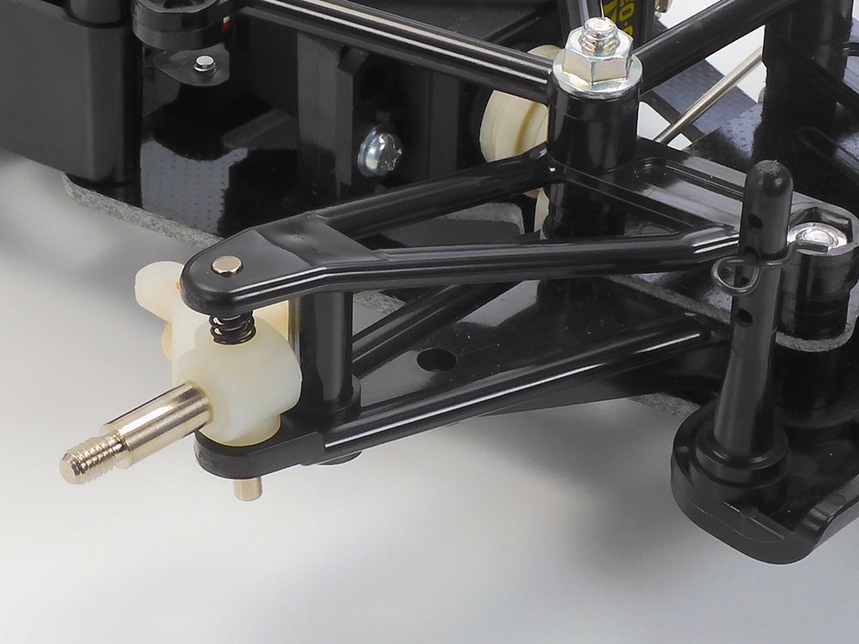

Based around an ABS plastic bathtub, with space frames front and rear and FRP plates, the chassis is a composite design that offers a rigid base to back up the fluid suspension: the result is a crisp, responsive driving experience. At the front, it has an independent coil-sprung king pin suspension setup, while the rear rigid suspension is a 3-point design with a 1.5mm thickness FRP T-bar and single CVA oil damper; teamed up with sponge tires front and rear, they ensure superb traction on smooth asphalt and carpeted surfaces. Additionally, use of spacers allows two different front and three rear ground clearance setups.
• 1/10 scale R/C model assembly kit. Length: 483mm, width: 207mm, height: 108mm. Wheelbase: 270mm.

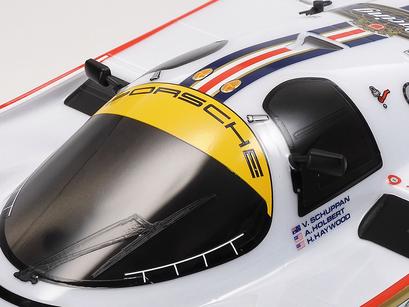

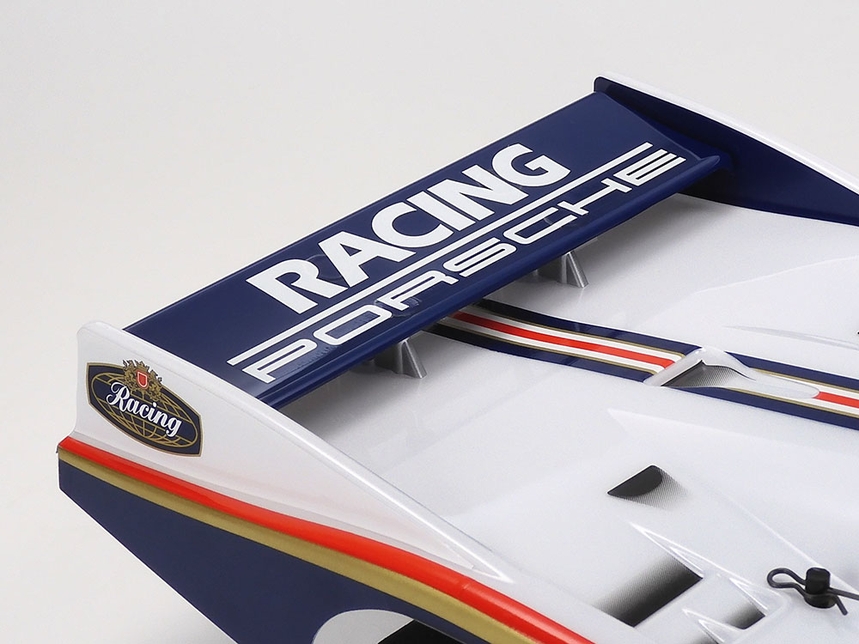

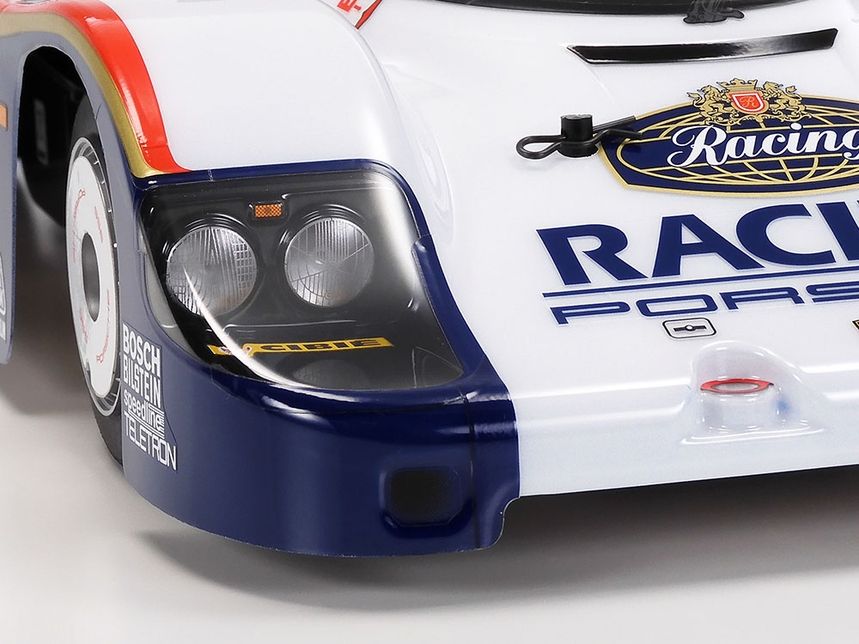

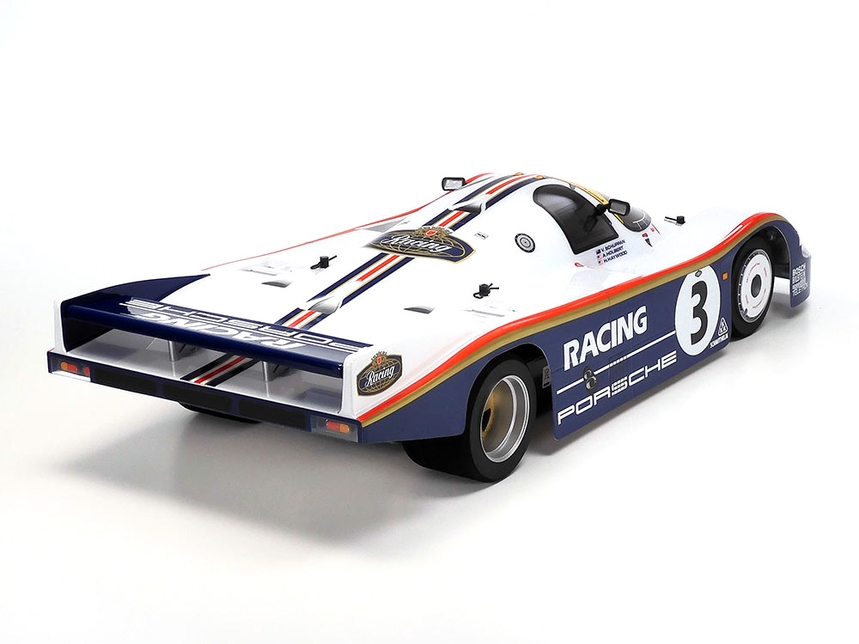

• The distinctive long-tail body, front and rear light cases, and wing are separately molded in polycarbonate.
• Features black ABS plastic side mirrors and wing stays.
• Based around an ABS plastic bathtub, with space frames front and rear and FRP plates, the chassis is a composite design that offers a rigid base to back up the fluid suspension: the result is a crisp, responsive driving experience.

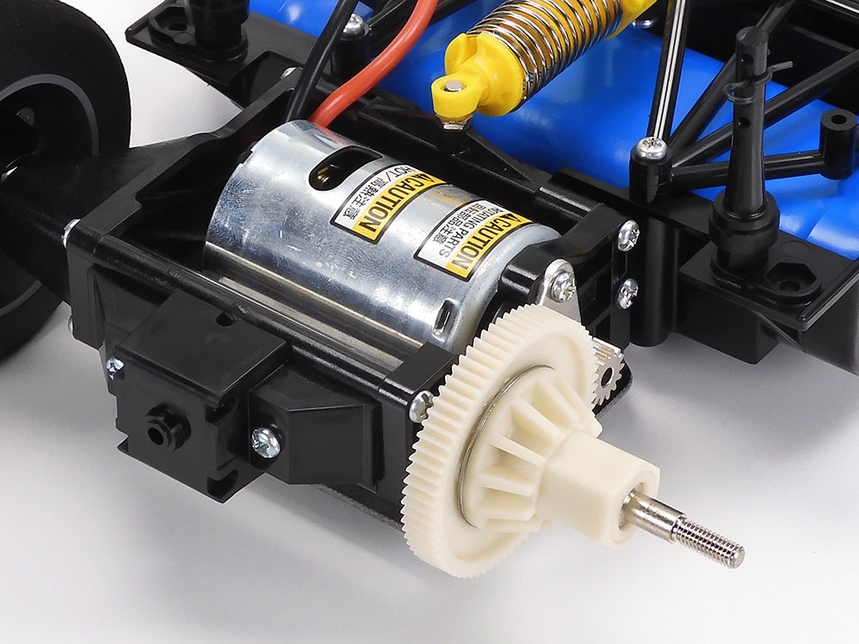

• The model is powered by a Sport-Tuned motor and uses a direct drive setup with spur and pinion gear mated to a ball pressure plate differential for smooth cornering performance.

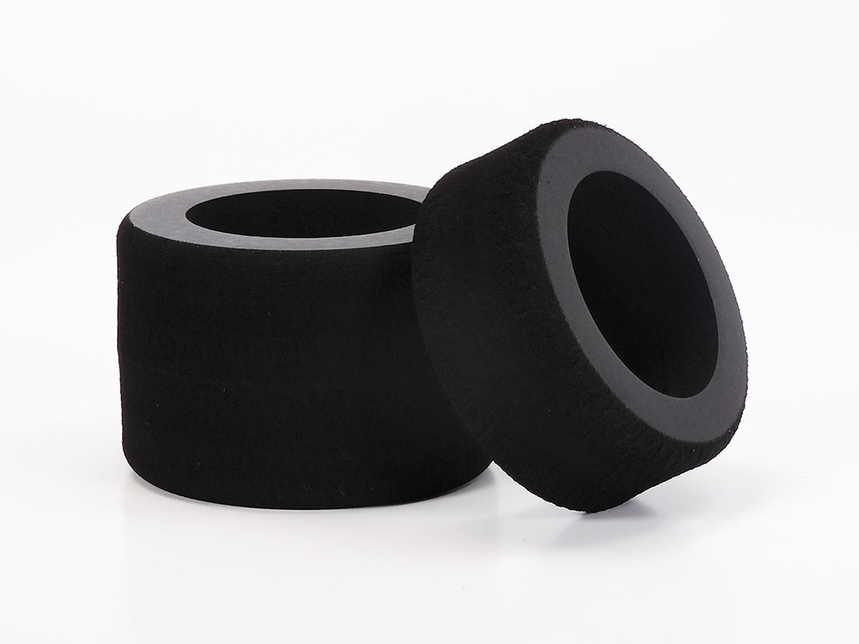

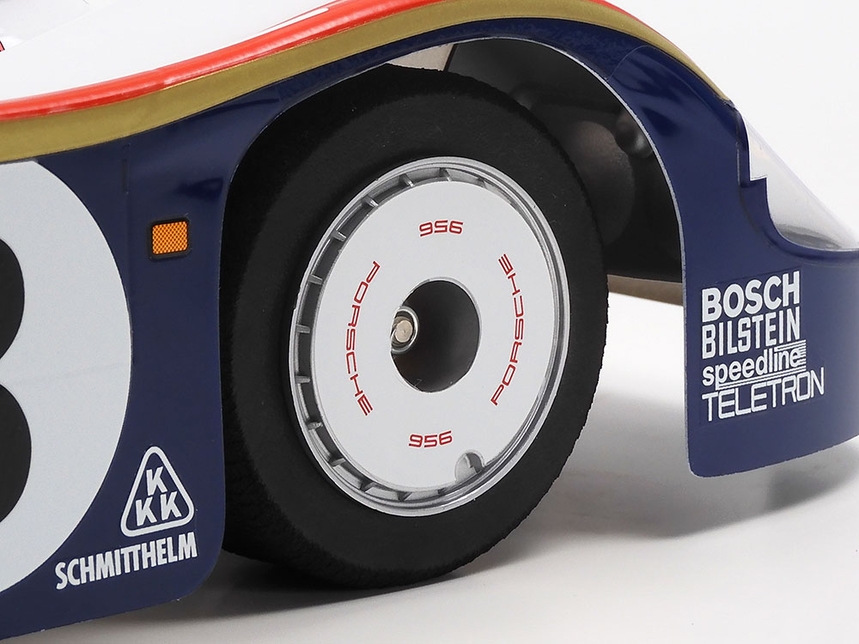

• Dish (front) and 5-spoke (rear) wheels are paired with high-grip sponge tires. (Wheels require painting.)
• Includes 540 Sport Tuned brushed motor.
• Required to complete: 2-channel radio, servo, ESC, 7.2volt battery with compatible charger, and Tamiya PS paints.
-
Specifications
- Adjustable Gear Ratio Yes
- Bearings Plastic bushing
- Body Material Polycarbonate
- Body Stickers Included
- Chassis Material ABS Plastic
- Chassis Type ABS Plastic Tub with Space Frame & FRP Plate
- Construction Type Assembly Kit
- Differential Type Pressure Plate Ball Differential
- Drive Type 2WD
- Electronic Speed Control (esc) Sold Separately
- Motor Sport Tuned 540-brushed type
- Required To Complete 2-channel radio, steering servo, ESC, 7.2-7.4volt battery & battery charger, and Tamiya PS paint.
- Scale 1/10
- Shock Damper CVA Oil Filled Rear Mono Shock/Coil Spring Front Suspension
- Suspension CVA Oil Filled Rear Mono Shock/Coil Spring Front Suspension
- Terrain Use On-Road
-
Gallery
-
-
Paints Needed
The colors below are the paints called out in the assembly manual of the model kit. All spray can paints (AS, TS and PS) are available in 100ml.
