Rc 1998 Honda Nsx Racing
-
Description
This assembly kit recreates the 1998 Honda NSX Racing! The version in this release is minus any sponsorship livery so you may create your own or simply paint the car as you wish. It sits on top of our easy to assemble and maintain 4WD TT-02 chassis.
The NSX - a midship engine sports car released in 1990 – achieved success in races all over the world and took part in Japanese GT car races from 1996. The 1998 version employed a 3.5-liter V6 engine, and featured improved aerodynamics, low center of gravity, improved brake system and easier maintenance. Four cars were raced that year and achieved five victories.

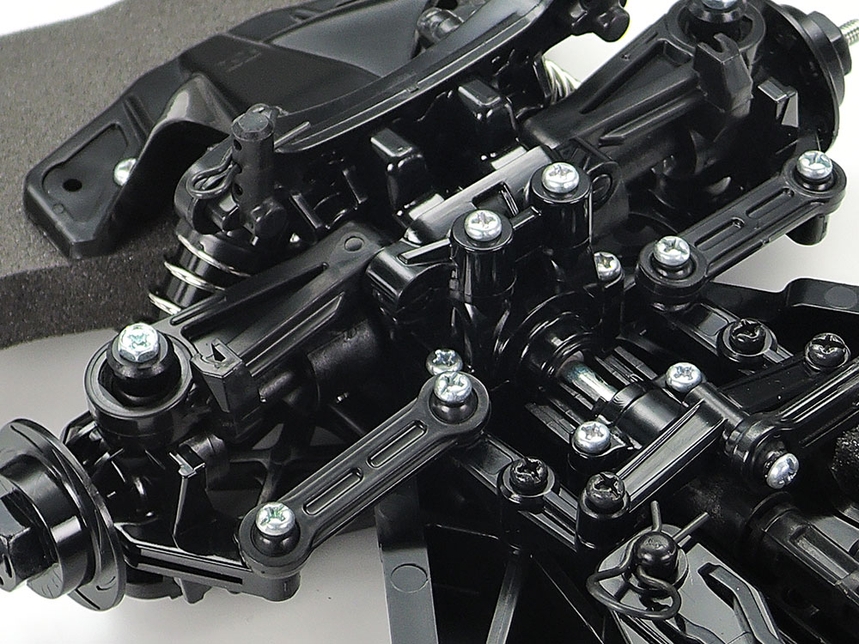

TT-02: Adaptable, Balanced Shaft Driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.
• 1/10 scale R/C model assembly kit. Length: 435mm, width: 194mm, height: 121mm. Wheelbase: 257mm.

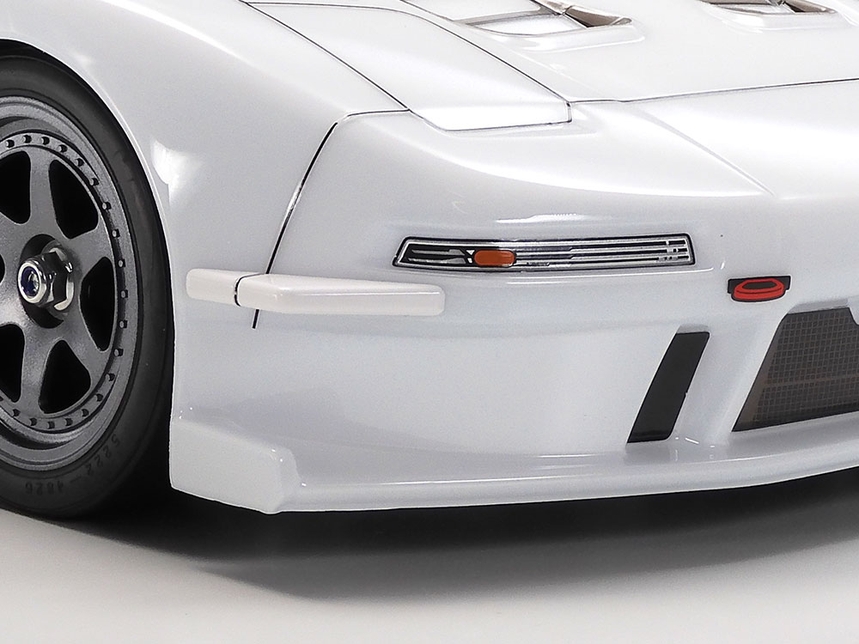

• Durable 1.0mm thick polycarbonate body authentically captures the form of the 1998 Honda NSX Racing.
• The model utilizes the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability.
• Gun metal 6-spoke wheels are paired with racing slick tires.
• Comes with trim stickers and window masking stickers for use in the paint job.
• Includes ESC and 540-Type brushed motor.
• Required to complete: 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint.
-
Specifications
- Adjustable Gear Ratio Yes
- Bearings Plastic bushing
- Body Material Polycarbonate
- Body Stickers Included
- Chassis Material ABS Plastic
- Chassis Type TT-02
- Construction Type Assembly Kit
- Differential Type Gear
- Drive Type 4WD
- Electronic Speed Control (esc) Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
- Motor 540-brushed type
- Required To Complete 2-channel radio, steering servo, 7.2-7.4volt battery & battery charger, and Tamiya PS paint.
- Scale 1/10
- Shock Damper Friction type
- Suspension Fully Independent Double Wishbone
- Terrain Use On-Road
-
Gallery
-
-
Paints Needed
The colors below are the paints called out in the assembly manual of the model kit. All spray can paints (AS, TS and PS) are available in 100ml.
