Rc Trf418 Chassis Kit
-
Description
The all new TRF418 racing chassis is the successor to the TRF417 chassis series, which has served TRF magnificently since its 2010 debut, securing the elite team numerous race victories including a third IFMAR ISTC World Championships in a row and unprecedented fifth overall. The TRF418 is set to take touring car racing to the next level with the 2014 IFMAR world Championship on the horizon! The TRF418 represents the first complete overhaul that Tamiya's top racing chassis has undergone in three years. Honed through countless tests using cutting-edge power sources, tires, and thanks to the feedback of TRF works drivers Marc Rheinard, Viktor Wilck and of course reigning World Champion Jilles Groskamp, the chassis boasts an almost 100% new design. Tamiya is constantly pushing the limits of R/C racing technology in an effort to stay ahead of the pack and secure the TRF team's sixth title, and the TRF418 promises to be another success story.
- Front and rear lower bulkheads feature identical design, while upper arms have an optimal attachment angle.
- Center bulkhead is separate from upper deck, optimizing chassis roll characteristics.

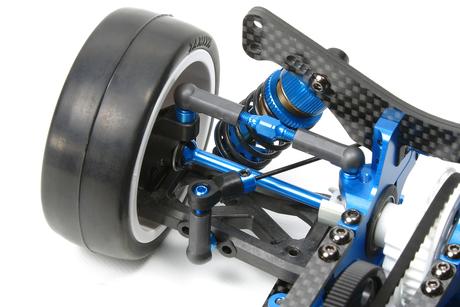

- Features redesigned front/rear suspension arms with attachment points in dedicated racing positions only.
- A weight reduction of 2g has been achieved with a lighter direct coupling.
- Newly-designed stabilizers are now attached using ball connectors.
- New steering arms offer a more linear steering feel.
- Includes a 20T pinion gear for a secondary gear reduction ratio of 1.85 (minimizing speed loss when throttle is disengaged.)
The North American release of the TRF418 will include the following bonus parts. These bonus parts will only be available in kits during the initial launch date of December 2013. Kits produced after the December date will not include the bonus parts.
- Damper Springs - soft & hard, 2pcs. each
- Soft Stabilizer Rods- front & rear, 1pc. each
- 1 additional set of Suspension Arms - enough to kit out the chassis
- 1 additional set of Front Uprights - enough to kit out the chassis
- 1 additional set of Rear Uprights - enough to kit out the chassis
There is a correction to page #8 of the manual, click (HERE) to view it
-
Specifications
- Adjustable Gear Ratio yes
- Bearings sealed ball bearing
- Body Material not included
- Chassis Material carbon fiber plate
- Construction Type assembly kit
- Differential Type sealed oil filled gear and Spool
- Discontinued True
- Drive Type belt
- Led Light Buckets no
- Led Lights no
- Motor not included
- Required To Complete 7.2 battery & charger
- Scale 1/10
- Shock Damper oil-filled damper
- Special Feature 1 New complete redesign from the TRF417 series.
- Special Feature 2 Front and rear lower bulkheads feature identical design, while upper arms have an optimal attachment angle.
- Special Feature 3 Center bulkhead is separate from upper deck, optimizing chassis roll characteristics.
- Special Feature 4 Features redesigned front/rear suspension arms with attachment points in dedicated racing positions only.
- Special Feature 5 A weight reduction of 2g has been achieved with lighter direct coupling.
- Special Feature 6 Newly-designed stabilizers are now attached using ball connectors.
- Special Feature 7 New steering arms offer a more linear steering feel.
- Special Feature 8 Includes a 20T pinion gear for a secondary gear reduction ratio of 1.85 (Minimizes speed loss when off throttle)
- Suspension fully independent double wishbone
- Terrain Use on-road
