Rc Trf417 V5 Premium Package
-
Description

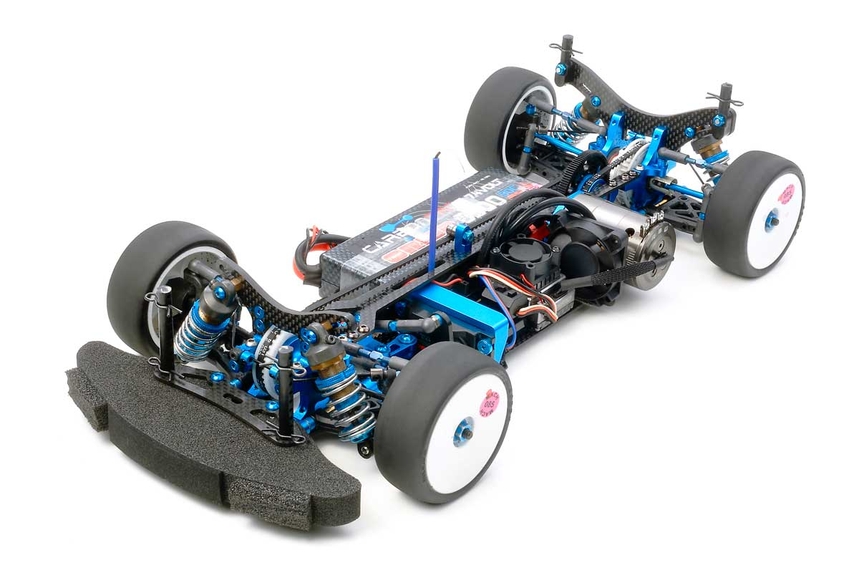

The MACH Circuit in Heemstede, the Netherlands played host to the seventh biennial IFMAR ISTC World Championships from July 26th-28th. Of course, Tamiya Racing Factory (TRF) was in the thick of the action and when all was said and done, TRF driver Jilles Groskamp and his TRF417V5 was crowned the champion. Not only was this Tamiya's third consecutive victory at this prestigious event, it also brought its total IFMAR touring car title count to five (2002, 2004, 2008, 2010, 2012). The TRF417V5 edition kit brings enhancements used during the world championship to customers around the world who choose to race the best touring car platform on the planet.

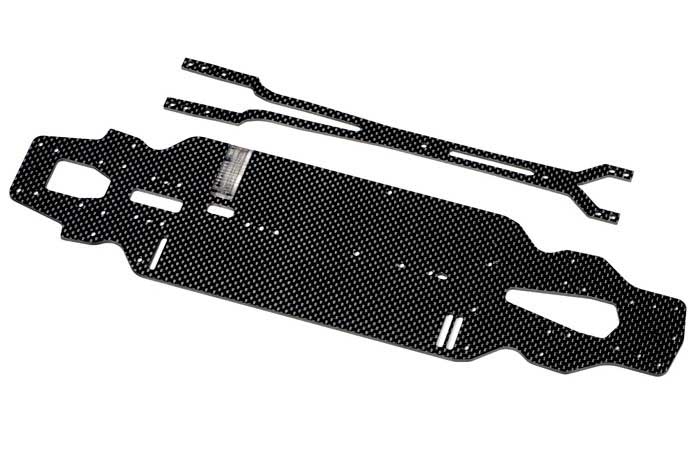

Newly designed carbon fiber upper (2.0mm thick) and lower (2.25mm thick) decks feature refined shapes to provide optimum roll flexibility.
Newly-designed one-piece aluminum servo mount is secured to the chassis by one side (inner side) only so as to not jeopardize chassis flexibility.
Newly-designed aeration dampers help maximize traction.
Front and rear carbon fiber damper stays (3.5mm thick) have redefined damper attachment positions.
Front direct coupling is equipped with steel cup joints and coupled with Double-Cardan drive shafts to provide efficient, smooth power transfer.
Rear gear differential features steel diff joints and swing shaft protectors.
-
Specifications
- Adjustable Gear Ratio yes
- Bearings sealed ball bearing
- Body Material not included
- Chassis Material carbon fiber plate
- Construction Type assembly kit
- Differential Type gear
- Discontinued True
- Drive Type belt
- Led Light Buckets no
- Led Lights no
- Motor not included
- Required To Complete wheels, tires, body set, motor, esc
- Scale 1/10
- Shock Damper oil-filled damper
- Special Feature 1 2.25mm Carbon Fiber Lower Deck
- Special Feature 10 Length: 370mm, Width: 186.5mm, Wheelbase: 257mm, F/R Tread: 161mm
- Special Feature 2 2.0mm Carbon Fiber Upper Deck
- Special Feature 3 3.5mm Carbon Fiber Damper Stays
- Special Feature 4 Front/Center: Direct Coupling
- Special Feature 5 Rear Gear Diff Unit
- Special Feature 6 Aeration Dampers
- Special Feature 7 Short Reversible Suspension Arms
- Special Feature 8 F/R Universal Shafts (Rear is Cardan Type)
- Special Feature 9 Aluminum Suspension Mounts (1B, 1B Separate, 1XB, 1D)
- Suspension fully independent double wishbone
- Terrain Use on-road
-
